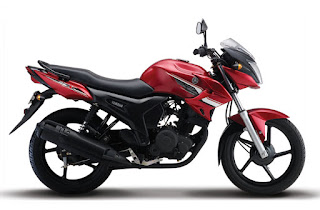

New Yamaha SZ and SZ-X Model 2010





Yamaha SZ & SZ-X is the latest bike launched in India by Yamaha Mother India recently. The branch endorsed by bolly-wood actor John Ibrahim. Let’s talk about the price, features and specifications of Yamaha SZ-X in details.Powering the new Yamaha SZ and SZ-X is a 4-stroke air-cooled all-new, single-cylinder 153cc SOHC engine has been adjusted for optimum performance ie Extra low power in order to increase mid-range speed thus ensuring a stress Vietnamese ride on Indian roads. The vehicle is equipped with AI systems and large capacity muffler with a catalyzer for cleaner emissions.

The car parade some cutting edge structural design as the headlight cowl ramp with a 3-way with sport fender look into enhancing the look of the bike. Having a large capacity fuel tank 14L, but for the ability to go the Extra Mile. Couch cushions ensure comfortable riding position for a straight back and Extra Comfort while traveling long distances. SZ-X is also equipped with some of the best technology such as electric starter and windshield to cut into the swirling air, thus making for a hassle free ride for experienced rider.

Add to SZ and SZ-X charisma is a sophisticated measurement tables, shroud with dynamic images, the tail lights look modern twin, full plastic chain case (for protection from dust and water), including accessories wheel.The strong and 5-speaking cast shadows Crouching ensure smoother and results in the rapid, dynamic three-dimensional form for motion.The impressive aerodynamic features allow the machine to cut through not air, clean and dynamic.

Yamaha SZ & SZ-X Features and Specifications

ENGINE:-

Engine type Air-cooled, 4-stroke, SOHC
Displacement 153 cc
Bore & Stroke 58.0 × 57.9 mm
Compression ratio 9.5:1
Maximum power 12.1PS / 7,500 rpm
Maximum torque 12.8N.m / 4500 rpm
Starting system Electric Start/Kick Start
Lubrication wet sump
Cylinder layout Single cylinder
Clutch type wet, multiple disc
Ignition system C.D.I
Fuel supply Carburettor
Battery 12 V, 5 AH (10 AH)
Headlight Halogen bulb (12 V, 35/35 W)
Primary/Secondary reduction ratios 3.409/3.000
Tranmission type 5 gear constant mesh
Caster/Trail 26 degree/99 mm
Gear ratios 1st=2.714, 2nd=1.789, 3rd=1.318, 4th=1.045, 5th=0.916


CHASSIS:-

Frame type Diamond
Front suspension Telescopic
Rear suspension Swingarm
Front brake Drum(150 mm)
Rear brake Drum (130 mm)
Front tyre 2.75-17 41P
Rear tyre 100/90-17 55P


DIMENSIONS :-

Overall length x width x height 2,050mm x 730mm × 1,100mm
Kerb Weight 132 kg
Wheelbase 1,320mm
Minimum ground clearance 165mm
Engine oil volume 1.0 litres
Fuel tank capacity 14 liters
Seat Height 802 mm
