Saturday, December 20, 2008

Bike Top Speed Chart

Bike Model Top Speed

Yamaha YZF R15 145kmp
(149.8cc)17ps @ 8500rpm
Maximum Torque 15nm@7500rpm

Yamaha F16 132kmp
(153.0cm3)14ps @ 8500rpm
Maximum Torque 13.6Nm@6000rpm

Hero Honda CBZ X-Treme ATFT 115kmp
(149.2cc)14.5bhp @ 8500rpm
Maximum Torque 13 Nm @ 6500 rpm

Hero Honda CBZ X-Treme ES 110kmp
(149.2cc)14.4 @ 8500rpm
Maximum Torque 12.80 Nm @ 6500 rpm

Hero Honda CBZ X-Treme KS 110kmp
(149.2cc)14.4 @ 8500rpm
Maximum Torque 12.80 Nm @ 6500 rpm

Hero Honda Hunk ES
120kmp
(149.2cc)14.4ps@8500rpm
Maximum Torque 12.80 Nm @ 6500 rpm

Hero Honda Hunk KS 120kmp
(149.2cc)14.4ps@8500rpm
Maximum Torque 12.80nm@6500rpm

Suzuki GS150R 120kmp
(149cc)13.8bhp@8500rpm
Maximum Torque 13.4 Nm @ 6000rpm

Honda Unicorn
101kmp
(149.1cc)13.3bhp@8000rpm
Maximum Torque 1.3kgm@5500rpm

Bajaj Pulsar 150 DTSi 113kmp
(149.01cc)13.50ps@8500rpm
Maximum Torque 13.90nm@6500rpm

Bajaj Pulsar 180 DTSi 117kmp
(179cc)16.70ps@8500rpm
Maximum Torque 15.22nm@6000rpm

Bajaj Pulsar 200 DTSi 120kmp
(198.80cc)18.01Bhp@8000rpm
Maximum Torque 17.68Nm@6000rpm

Apache RTR 160 Fi(159.7cc)
120kmp
15.2bhp@8500
Maximum Torque 13.1 Nm @ 6000 rpm

TVS Flame CCVTi (125cc) 95kmp
10.5bhp@7500
Maximum Torque 10 Nm @ 6000rpm

Honda Shine Disc-ES (124.6cc) 100kmp
10.3 Bhp @ 7500 rpm
Maximum Torque 10.9 Nm @ 5500 rpm

Yamaha Gladiator (123.7cc) 108kmp
10.8ps@7500rpm
Maximum Torque 10.4nm@6500rpm

Hero Honda Glamour Fi (124.7cc) 108kmp
9. Bhp @ 7000 rpm
Maximum Torque 10.35 Nm @ 4000 rpm

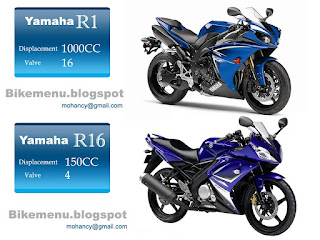

Yamaha R 1 vs R 15










Yamaha R15 Sportsbike

Yamaha R15 Sportsbike present a range of quality products tested in the uncompromising extremes of motorcycle racing competition.The rider’s will is spread to the handle, the body and then the engine giving birth to unprecedented torque. This force is truly dynamic. Due to minute calculations and overcoming major challenges, an ultimate body balance has been produced. The agile running performance is extremely exciting. The superior performance brings riding feel, which when you ride provides you an emotional high. Thus this is unique not only for the rider but also a source of great fascination to the onlooker. With the R15 you have the sensation of ruling the streets to your heart’s content.
The R15 features Yamaha D-MODE (or drive mode) with rider-selectable throttle control maps to program YCC-T performance characteristics for riding conditions.The R15 series is the embodiment of 1) a wide frontal space that protects the rider, 2) an easy to ride seating area that gives riders the freedom of movement and allows them to steer effectively, 3) the glamorous tail treatment that takes into account the management of airflow behind the rider, and 4) a sensual racing form that brings all 3 of these elements together in a harmonious package. These characteristics have been splendidly reproduced in the R15.
Die R15 ist ein pures Streetbike, das sich im Dschungel der Stadt genauso wohl fühlt wie auf Landstrassen jeder Art.Each and every part of Yamaha R15 has been designed with a lot of detailed attention and careful thought. This ultimate degree of perfection means even the slightest feature has not been overlooked. Only YAMAHA ensures this kind of craftsmanship. The rider and the machine share a feeling of oneness, and from different angles the impression is different. This is particularly because the finest components have been used in its precise manufacturing. The R15 possesses both a rough and brutish expression as well as a certain subtlety. This high quality masterpiece will without doubt become a rage for the next generation.

ENGINE

Engine type Liquid-cooled, 4-stroke, SOHC, 4-valve
Cylinder arrangement Single cylinder
Displacement 149 .8cc
Bore & Stroke 57×58.7mm
Compression ratio 10.4:1
Maximum power 17PS / 8,500rpm
Maximum torque 15 N.m / 7,500rpm
Starting system Electric Start
Lubrication wet sump
Engine oil capacity 1.0 liters
Fuel tank capacity 12 liters
Fuel supply system Electronic fuel injection
Ignition system T.C.I
Primary / Secondary reduction ratio 3.042 / 3.000
Clutch type Constant-mesh wet multi-plate
Transmission type Return type 6-speed
Gear ratios 1st=2.833, 2nd=1.875, 3rd:=1.364,
4th=1.143, 5th=0.957, 6th=0.84

CHASSIS

Frame type Deltabox Frame
Caster / Trail 26° / 100mm
Tire size (Front / Rear) 80/90-17 / 100/80-17
Brake type (Front / Rear) Hydraulic, single disc (Front / Rear)
Suspension type (Front / Rear) Telescopic / Linked type Monocross

DIMENSIONS

Overall length x width x height 1,995mm x 670mm x 1,070mm
Seat height 790mm
Wheelbase 1,290mm
Minimum ground clearance 160mm
Dry weight / Curb weight 120kg / 131kg


Click Here to go for official site
Yamaha Motor India

Friday, December 19, 2008

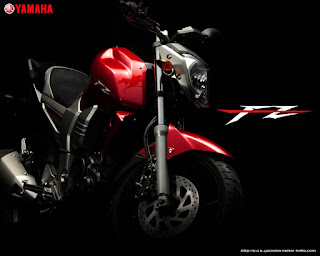

Yamaha FZ 16





Yamaha FZ 16 Sportsbiking

Yamaha FZ16 Sportsbike present a range of quality products tested in the uncompromising extremes of motorcycle racing competition.The rider’s will is spread to the handle, the body and then the engine giving birth to unprecedented torque. This force is truly dynamic. Due to minute calculations and overcoming major challenges, an ultimate body balance has been produced. The agile running performance is extremely exciting. The superior performance brings riding feel, which when you ride provides you an emotional high. Thus this is unique not only for the rider but also a source of great fascination to the onlooker. With the FZ16 you have the sensation of ruling the streets to your heart’s content.
Die FZ16 ist ein pures Streetbike, das sich im Dschungel der Stadt genauso wohl fühlt wie auf Landstrassen jeder Art.Each and every part of Yamaha FZ16 has been designed with a lot of detailed attention and careful thought. This ultimate degree of perfection means even the slightest feature has not been overlooked. Only YAMAHA ensures this kind of craftsmanship. The rider and the machine share a feeling of oneness, and from different angles the impression is different. This is particularly because the finest components have been used in its precise manufacturing. The FZ16 possesses both a rough and brutish expression as well as a certain subtlety. This high quality masterpiece will without doubt become a rage for the next generation.


Engine type Air-cooled, 4-stroke, SOHC, 2-valve
Displacement 153.0cm3
Bore & Stroke 58.0 × 57.9mm
Compression ratio 9.5:1
Maximum output 14PS / 7500 rpm
Maximum torque 14 N.m / 6000 rpm
Starting method Electric starter
Lubrication type Wet sump
Carburetor type BS26
Clutch type Constant mesh wet multiplate
Ignition type CDI
Transmission type Return type 5-speed
Brake type(front/rear) Hydraulic single disc / drum
Fuel tank volume 12 liters
Engine oil volume 1.2 liters


Click Here to go for Official Site
Yamaha Motor India

Yamaha Type RS/SS and Yamaha Graffiti Yamaha Gladiator(125 cc Bikes)









Yamaha Type RS/SS and Yamaha Graffiti
Yamaha Sports bike present a range of quality products tested in the uncompromising extremes of motorcycle racing competition.Yamaha Type RS/SS and Yamaha Graffiti's race-bred technology enhances the pleasure of motorcycling like no other bike can. Fine tuned to add more precision and control to the core aspects of riding, cornering, braking and style, Yamaha aims to enhance the man-machine interaction to new levels. The same technology has created the enhanced Gladiator Type SS and Type RS. Climb on. Enjoy pure sport biking!

Engine type Air-cooled, 4-stroke, SOHC, 2-valve
Cylinder arrangement Single cylinder
Displacement 123.7cc
Bore & Stroke 54.0 × 54.0mm
Compression ratio 10.0:1
Maximum power 11PS (8.0kW) / 7,500rpm
Maximum torque 10.4N.m / 6,500rpm
Starting system Kick start / Electric start
Primary / Secondary reduction ratio. 3.4 / 3.214
Clutch type Multiplate wet type
Transmission type 5 Speed constant mesh
Dry weight / Kerb weight 117kg / 128kg
Fuel tank capacity 13 liters


click here to go for official site
Yamaha Motor India official sites

Yamaha Alba



Yamaha Alba Got it
Alba bike have great Look and Classic Average on city road.Yamaha Bike Ignite Alba’s electric start engine and set the road on fire! Get a feel of Yamaha Alba’s robust and sturdy design. Make heads turn as you ride the new wave of fashion, a machine defined by style and intelligence.

Engine type Air-cooled, 4-stroke, SOHC, 2-valve
Cylinder arrangement Single cylinder
Displacement 106cc
Bore & Stroke 49.0 x 56.0mm
Maximum power 7.6PS (5.59kW) / 7,500rpm
Maximum torque 7.85N.m / 6,000rpm
Starting system Kick start / Electric start
Clutch type Multiple wet type
Gear box 4-speed constant mesh
Overall length x width x height 2,000mm x 730mm x 1,050mm
Seat height 1,290mm
Wheelbase 173mm
Minimum ground clearance 119kg / 130kg
Fuel tank capacity 13 liters

Yamaha G5




Yamaha G5
Yamaha Bike electric start engine speeds into the next level of biking with an electric start engine in G5 model. A machine engraved with attitude, built on durability and on excellent performance. So ride on and define new trends wherever you go!

Engine type Air-cooled, 4-stroke, SOHC, 2-valve
Cylinder arrangement Single cylinder
Displacement 106cc
Bore & Stroke 49.0 x 56.0mm
Compression ratio 9.0:1
Maximum power 7.6PS (5.59kW) / 7,500rpm
Maximum torque 7.85N.m / 6,000rpm
Starting system Kick start / Electric start
Lubrication Compulsive pressure wet sump
Carburetion Variable venturi type
Ignition system C.D.I.
Battery capacity / Type 12V, 2.5Ah
Primary / Secondary reduction ratio 3.722 / 3.214
Clutch type Wet multiple-disc
Seat height 790mm
Wheelbase 1,300mm
Minimum ground clearance 160mm
Dry weight / Kerb weight 123kg (Standards) / 127kg (Deluxe)
Engine oil capacity 1.1 liters
Fuel tank capacity 13 liters
Max payload 130kg

Monday, December 8, 2008

Honda unicorn,unicorn honda,Sporty Bike,Sporty Unicorn










HONDA UNICORN
Honda Unicorn is a sporty motorcycle with excellent driving stability due to its mono suspension. Honda Unicorn’s newly developed engine achieves top level fuel efficiency in the 150cc motorcycle class – 60km per liter*1. In addition, Unicorn has unique features to achieve excellent usability such as “tough up tube” that helps prevent flat tires. The Unicorn will go on sale in October 7, at a price of 52,950 Rupee (approximately US$ 1,140*2). HMSI plans to sell 110,000 units per year.


Saw a 2008 Unicorn on the road today. Alloys have refreshed the looks. It looks much better than the spoked version. A 100/80 size rear tyre (same as that of the Pulsar 150) enhanches the looks further.Available Sporty look at all show rooms.
Wish Honda had pushed the footrests a bit backward and gone for a sporty position. The new Unicorn still retains the Commuter”ish” riding position. A 17′th inch at the rear would instead of the current 18 inch would have done wonders to the looks of the Unicorn which already has a monoshock. The smaller 17 inch would have accentuated the gap between the rear wheel and the seat.

Unicorn Specifications
Measurements:

* Kerb Weight: 146 Kgs
* Length: 2095 mm
* Width: 750 mm
* Height: 1100 mm
* Wheelbase: 1340 mm
* Seat Height (mm): 790
* Ground Clearance (mm):168

1. Fuel Tank Capacity (Full ): 13 litres
2. Reserve Tank Capacity: 1.3 litres

Body/Chasis

* Frame: Diamond Frame
* Front Suspension: Telescopic
* Rear Suspension: Mono-suspension

* Front Tyre: 2.75 x 18
* Rear Tyre: 100 / 90 - 18
* Front Brake Type: 240 mm Disc
* Rear Brake Type: 130 mm Drum

Engine & Transmission

* Engine Type: Single Cylinder 4 Stroke, Air Cooled OHC
* Displacement: 149.1 cc
* Bore × Stroke: 57.3 mm × 57.8 mm
* Net Power: 13.3 bhp @ 8000 rpm (9.9 KW)
* Torque: 1.3 Kg-m @ 5500 rpm (12.8 Nm)
* Air Filter: Paper Type
* Carburetor: CV Type
* Starting System: Self Start
* Transmission: Constant Mesh, 5 Speed gear
* Gear Shift Pattern: 1 Down - 4 Up

Honda Stunner CBF 125cc,Stunner CBF,Honda CBR,125 CC Honda bike





Honda Stunner CBF 125cc Specifecations

Engine:-
4 Stroke,Air Cooled OHC Single Cylinder
Displacement
124.7cc
Net Power
11 BHP @ 8000 rpm
Air Filter
Paper Type
Carburetor
CV Type
Starting system
Kick / Self
Transmission
Constant Mesh,5 Speed Gear
Gear Shift Pattern
1 Down-4up

ELECTRICALS & METER:-
lgition
Digital CDI
Battery
12V-5AH
Head Lamp
12v/35w
Trip Meter
Available

WEIGHT & MEASUREMENT:-
Kerb Weight
129kg
Length
2012mm
Width
734mm
Height
1113mm
Wheelbase
1271mm
Ground Clearance
173mm
Fuel Tank
10 ltr.(with 2 ltr. Reserve)
Tank Cap
Aero Type Fuel Tank Cap

PERFORMANCE:-
Acceleration(0-60 kmph)
5.2 Sec*

Honda Shine,Shine 125cc bike







Honda Shine 125cc Specifications

WEIGHT / MEASUREMENT:-
Kerb Weight 122 kg
Length 2015 mm
Width 730 mm
Height 1070 mm
Wheelbase 1265 mm
Ground Clearance 175 mm
Fuel Tank Capacity 11 ltr.
Reserve Tank Capacity 1.3 ltr.


PERFORMANCE:-
Acceleration 0-60 kmph 5.3 Sec.
Mileage 65 kmpl


BODY:-
Frame Advanced Design Diamond Frame
Front Suspension Telescopic Fork
Rear Suspension 3 Step Spring Loaded Hydraulic Shock Absorber
Front Tyre 2.75 - 18 42P(4PR)
Rear Tyre 2.75 - 18 48P(6PR)
Front Brake Type 240mm Disc / 130mm Drum
Rear Brake Type 130mm Drum

ENGINE & TRANSMISSION:-
Engine Type 4 St, Air Cooled OHC Single Cylinder
Displacement 124.6 cc
Net Power 10.3 BHP @ 7500 rpm (7.68 KW)
Torque 1.1 Kg-m @ 5500 rpm (10.9 Nm)
Air Filter Paper Type
Carburetor CV Type
Starting System Kick / Self
Transmission Constant Mesh, 4 SpeedGear
Gear Shift Pattern All Up


ELECTRICALS:-
Ignition Digital CDI (Multi Mapping)
Battery 12 - 12.5 AH (Ks), 12 V - 7 AH (Es)
Headlamp Multi Reflector 12 V / 35 W

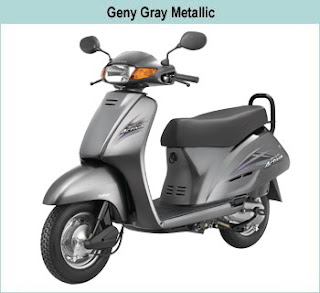

Honda Activa,Honda activa scooty







Honda Activa Specifications


Engine:-
Type 4-stroke, Single cylinder, air cooled, OHC
Displacement 102 cc
Max. Power 7 Bhp @ 7000 rpm
Max. Torque 0.8 Kg-m @ 5500 rpm
Transmission V-matic
Ignition Self / Kick

Electricals
Battery 12V, 5Ah
Headlamp 35W
Chassis
Frame High rigidity Under Bone type
Dimensions (lxbxh) 1765 x 715 x 1130 mm
Wheel Base 1235 mm
Seat Height 760 mm
Ground Clearance 145 smm

Suspension
Front Bottom Link with spring loaded hydraulic damper

Rear Unit swing with spring loaded hydraulic damper

Tyre Size
Front 3.50 - 10, 4 PR
Rear 3.50 - 10, 4 PR

Brakes
Front Drum, 130 mm dia
Rear Drum, 130 mm dia
Fuel Tank Capacity
6 litres
